4006ST
The 4006 ST is integrated to a Ford F-550/F600 chassis for easy transport between cleaning sites. The cleaning heads are easily changeable for rubber and paint applications. It has an intuitive LCD operator interface for easy control. Using low water volume, the 4006ST is the perfect eco-friendly system for small, medium and large airport applications.
The 4006ST Advantage

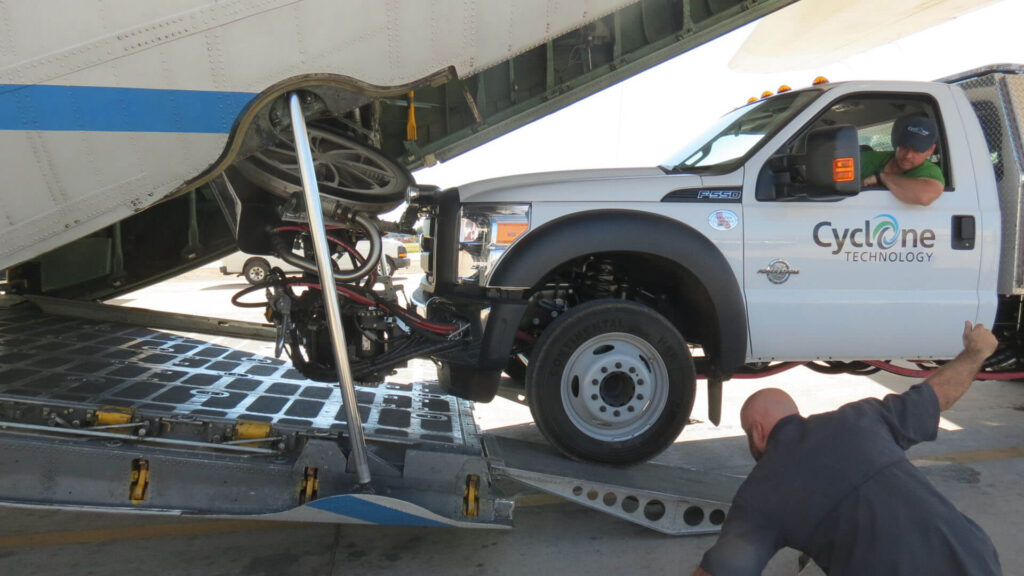

Air Transportable (Variable Pump)
Available with a variable pressure UHP pump to control your water pressure and flow for different applications.

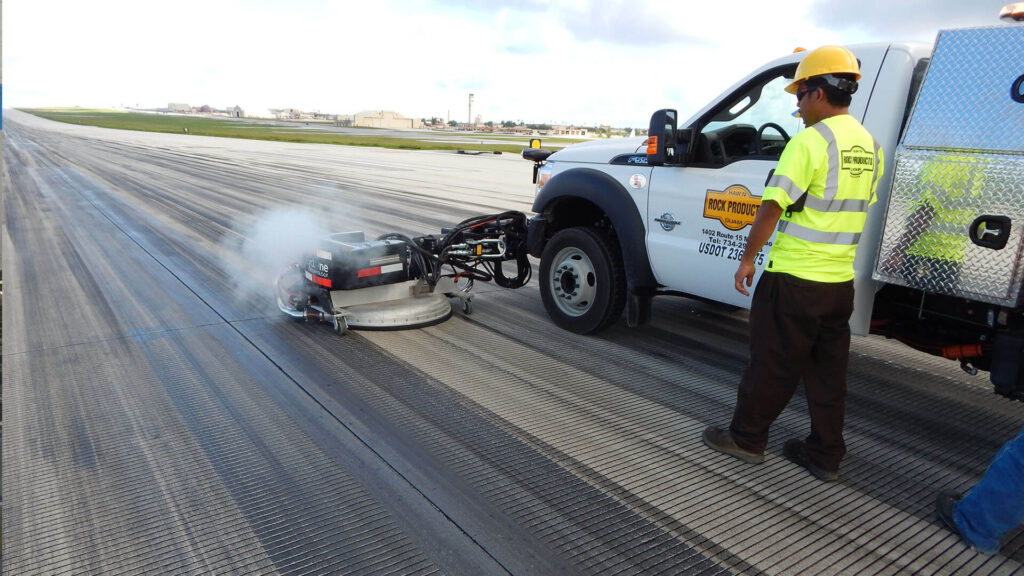

Rubber and Paint Removal
Cleans inside grooves without damaging runways or other hard surfaces, extending the time before the next removal is required.
Automatic Waste Bin Dumping
Chemical and vacuum-free cleaning removes and recovers rubber and paint build-up in a single pass.

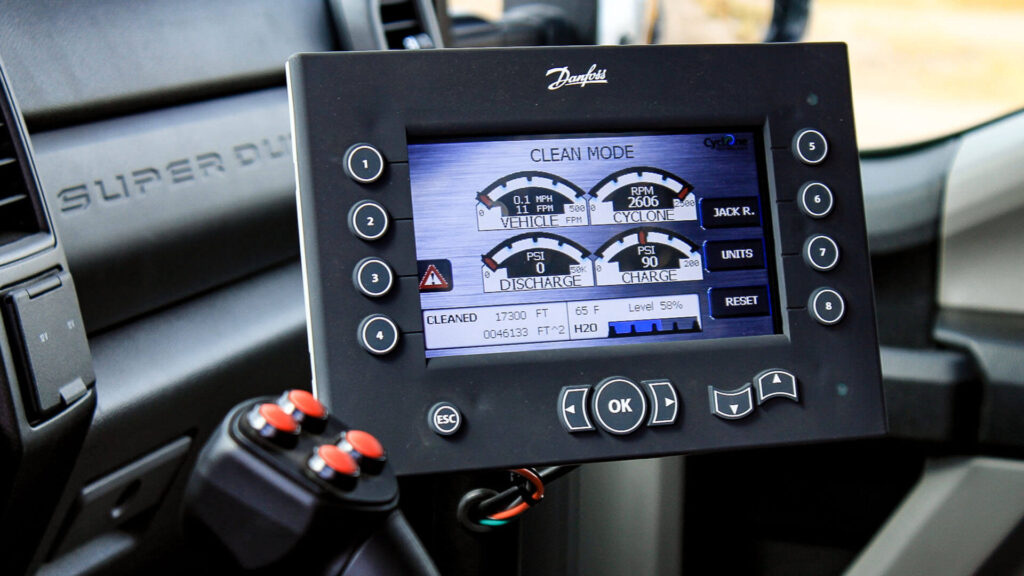

Intuitive Controls
The easy to use operator interface allows for safe and accurate control of the cleaning system.
Key Benefits
- Instant and full recovery
- Chemical and vacuum free
- Safe and cost-effective
- Great for small airports – under 19,500 lbs.
- Up to Two Hour Run Time
- Up to 40,000 PSI
4006ST in Action
How it Works
Within the Cyclone head, up to 24 sapphire-tipped spray nozzles, mounted to high-speed rotating arms, blast the surface with Ultra-High-Pressure water.
Specially shaped turbine blades, mounted to the arm, create a swirling vortex of air and water, loosening rubber or paint at 140 mph - equivalent to a Category 4 cyclone storm.
As the Cyclone head moves along the surface, the Cyclone vortex provides a secondary cleaning effect, while simultaneously lifting the waste and water off the surface, directing it into a collection tank mounted on the top of the head.

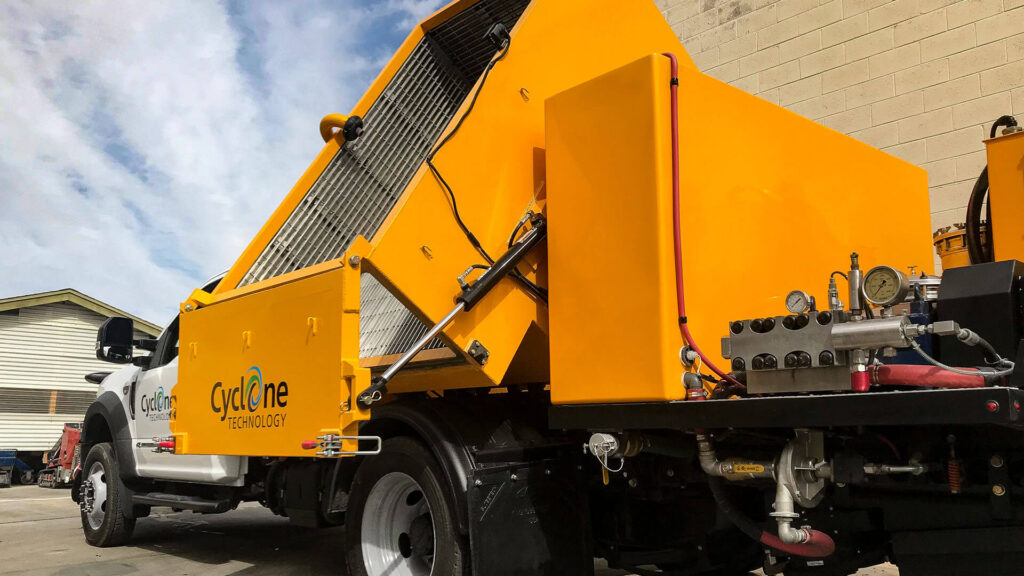

A high-volume macerator return pump further emulsifies, pulverizes and pumps the recovered wastewater slurry into the large 2,100-gallon (7,948 liter) waste recovery tank located at the rear of the vehicle.
The open atmosphere waste recovery tank separates solids from liquids, for easy disposal.
The waste recovery tank has push button controls to simply and easily remove the collected waste from the tank, and dump into a dumpster
Cyclone Technology’s vacuum-free design means less maintenance and lower annual fuel cost, resulting in a faster return on investment.
FAQ
What are the standard features?
- Uses a low volume of water to provide effective rubber removal and paint removal.
- Simple, on-board, gravity-based separation of waste from water.
- Patented Cyclone head provides full recovery without the need for a vacuum.
- Low clearance allows for paint removal inside most parking structures.
- Computer monitoring of the equipment and drive to protect both the surface and machine.
- Adjustable pressure allows for center line cleaning and gate cleaning with no surface damage or re-paint required.
What are the additional benefits?
- Walk-behind unit provides excellent maneuverability.
- At 40,000 psi (2,750 bar) the CY200 UHP is ideal for paint removal applications
- Consistent results with a range of up to 300+ feet (91 m).

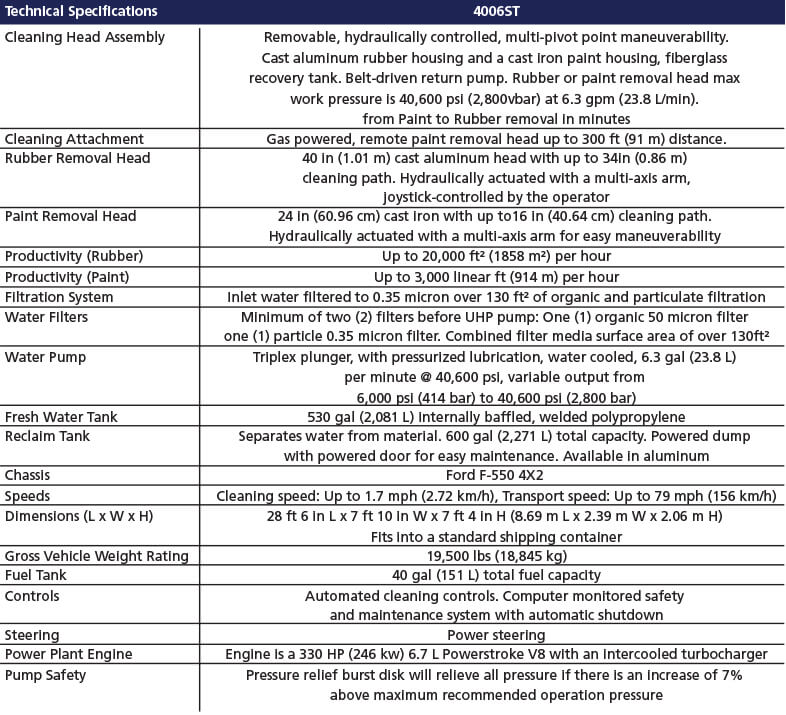

What are the 4006ST specifications?
